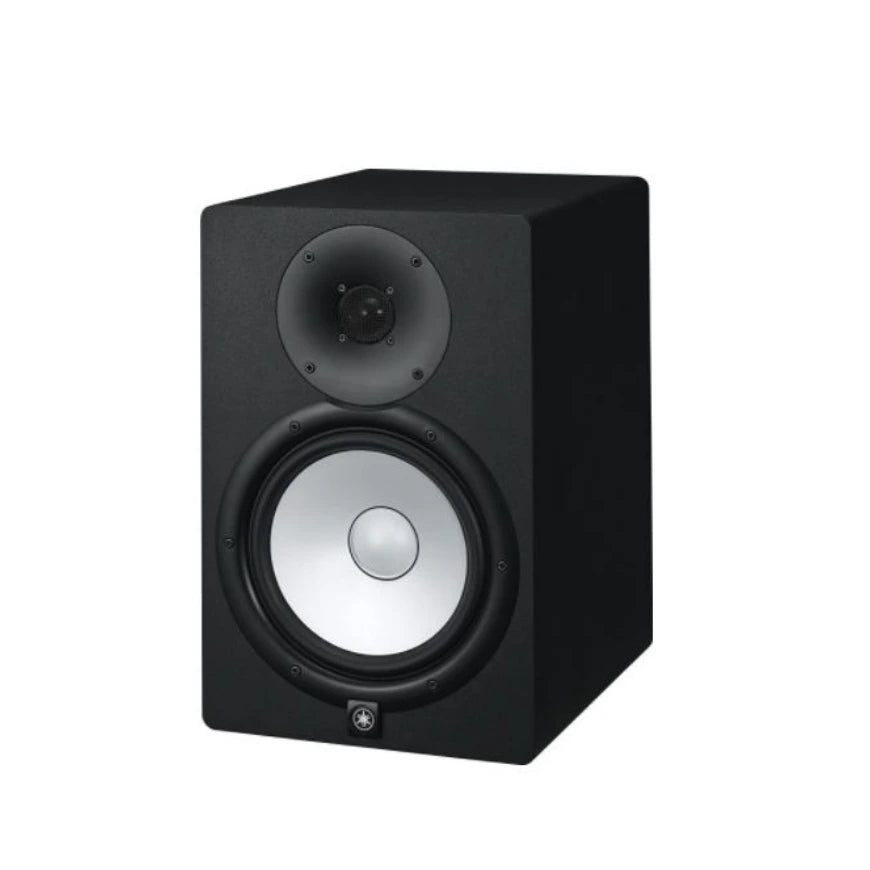

2-way bass-reflex bi-amplified nearfield studio monitor with 8″ cone woofer and 1″ dome tweeter.
- 2-way bass-reflex bi-amplified nearfield studio monitor with 8″ cone woofer and 1″ dome tweeter
- 38Hz – 30kHz (-10dB), 47Hz – 24kHz (-3dB) frequency response
- 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
- Packaging single
TIME FOR A REALITY CHECK
Ever since the 1970’s the iconic white woofer and signature sound of Yamaha’s nearfield reference monitors have become a genuine industry standard for a reason – their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process. By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha’s speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5″ model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.
|
HS8
|
HS8I
|
| General specifications |
| Speaker type |
2-way bi-amp powered studio monitor |
2-way bi-amp powered studio monitor |
| Frequency response (-10dB) |
38Hz – 30kHz |
38Hz – 30kHz |
| Frequency response (-3dB) |
47Hz – 24kHz |
47Hz – 24kHz |
| Components |
LF |
8″ cone |
8″ cone |
| HF |
1″ dome |
1″ dome |
| Crossover |
2kHz |
2kHz |
| Output power |
120W (LF:75W, HF:45W) |
120W (LF:75W, HF:45W) |
| Input sensitivity |
-10 dBu/10k ohms |
-10 dBu/10k ohms |
| I/O connectors |
XLR3-31 type (balanced), PHONE (balanced) |
XLR3-31 type (balanced), PHONE (balanced) |
| Indicators |
Power ON (White LED) |
Power ON (White LED) |
| Power consumption |
60W |
60W |
| Shape |
Bass-reflex type |
Bass-reflex type |
| Cabinet material |
MDF |
MDF |
| Dimensions |
W |
250mm (9-13/16″) |
250mm (9-13/16″) |
| H |
390mm (15-3/8″) |
390mm (15-3/8″) |
| D |
334mm (13-1/8″) |
334mm (13-1/8″) |
| Net weight |
10.2kg (22.5 lbs.) |
10.7 kg (23.6 lbs.) |
| Accessories |
Owner’s Manual, Power cord |
Owner’s Manual, Power cord, Screws for installing brackets x 2 |
| Packaging |
Single |
Single |
| Others |
LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) |
LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) |
| Flying and mounting hardware |
– |
Four surfaces x 2 x M8 (120 mm pitch) |
| Options |
– |
Baton bracket BBS251, Ceiling bracket BCS251, Wall bracket BWS251, Wall / ceiling bracket BWS50 |
